As the distributed energy market grows, many installers and resellers face a common challenge — how to deliver reliable, plug-and-play systems that minimize onsite labor, wiring errors, and commissioning time.
That’s where pre-wired energy kits come in. Whether it’s for residential solar + battery setups or small commercial energy storage systems, providing factory-assembled, pre-wired kits is becoming a winning strategy for EPCs, distributors, and OEMs alike.
This article explains how to design, assemble, and deliver pre-wired kits effectively — while maintaining quality, flexibility, and compliance.
1. What Is a Pre-Wired Energy Kit?
A pre-wired kit (or pre-assembled power kit) is a partially or fully integrated power system, wired and tested at the factory before delivery to the end user or installer.
It typically includes:
- Inverter / PCS (mounted and wired)
- Battery racks or modules
- Breakers, fuses, busbars, and cables
- Monitoring and control wiring
- Labels and safety documentation
When the kit arrives on-site, installers only need to:
- Mount the kit (wall, rack, or cabinet)
- Connect AC input/output
- Connect battery cables (if modular)
- Power up and commission
⚙️ Example:
A 10 kW hybrid inverter + 20 kWh LFP battery cabinet, shipped pre-wired with breakers and communication cables, can be installed in under 2 hours instead of 2 days.
2. Why Pre-Wired Kits Matter
2.1 For Installers
- Reduced Installation Time: 60–80% less wiring and configuration on site.
- Less Risk of Errors: Factory wiring and testing ensure consistent performance.
- Faster Commissioning: All communication and safety wiring pre-validated.
2.2 For End Clients
- Cleaner, More Professional Appearance
- Predictable Cost and Delivery Time
- Higher Reliability and Warranty Confidence
2.3 For Suppliers
- Easier Standardization and Quality Control
- Brand Differentiation: Pre-wired kits convey engineering expertise.
- Higher Margins from integrated solutions vs. parts-only sales.
3. Common Types of Pre-Wired Kits
| System Type | Target Market | Typical Configuration |
|---|---|---|
| Residential Backup Kit | Homes, small offices | 5–15 kW hybrid inverter + 10–30 kWh LFP battery |
| Commercial Cabinet Kit | Shops, warehouses | 30–100 kW PCS + 100–300 kWh modular racks |
| PV + Storage Kit | Rooftop systems | DC-coupled inverter + PV combiner + battery |
| EV Charger + ESS Kit | Fleet depots, charging stations | PCS + battery + EV controller pre-wired |
| Microgrid Kit | Off-grid / rural power | Multi-inverter setup with pre-wired AC/DC distribution |
Each configuration can be scaled or customized with different battery capacities, communication options, and breaker sets.
4. Key Design Considerations
When creating pre-wired kits, the design must balance standardization and flexibility.
4.1 Voltage and Power Compatibility
- Match inverter and battery voltage precisely.
Example: 51.2V batteries (low voltage) vs. 768V systems (high voltage). - Provide clear terminal labeling for installers.
4.2 Cable Management
- Use pre-cut, color-coded cables with crimped terminals.
- Route cables through ducts or conduits for a clean appearance.
- Include strain relief and anti-vibration supports for mobile or industrial kits.
4.3 Safety and Compliance
- Integrate certified breakers, contactors, and fuses.
- Include emergency stop, earthing, and isolation switches.
- Conform to UL, IEC, or CE safety standards depending on market.
4.4 Communication & Control Wiring
- Pre-wire BMS–PCS–EMS links (CAN, RS485, or Ethernet).
- Provide standard pin-out diagrams and protocol details.
- Label all ports clearly: CAN-IN, CAN-OUT, RS485, TCP/IP, etc.
4.5 Documentation
Every kit should include:
- Wiring diagram
- Connection guide
- Commissioning checklist
- Factory test report
- Label map for breakers and connectors
5. Manufacturing Workflow for Pre-Wired Kits
Here’s a typical process for producing and shipping pre-wired ESS kits:
Step 1: Engineering Design
- Define system configuration (power, voltage, topology)
- Select components and wiring layout
- Create 3D CAD model of cabinet/rack
Step 2: Assembly and Pre-Wiring
- Mount inverter/PCS, DC combiner, and AC distribution
- Wire internal circuits per schematic
- Route cables and label all points
Step 3: Testing
- Perform continuity and insulation resistance tests
- Simulate charge/discharge under load
- Verify communication signals and EMS functions
Step 4: Quality Control
- Check torque of terminals and fasteners
- Inspect wire routing, labeling, and fusing
- Generate test report + serial number
Step 5: Packaging
- Use shock-absorbing base and transport locks
- Provide QR code linking to manuals and test certificates
- Add palletized or wooden crate packaging for overseas shipping
📦 Pro Tip:
Label major connectors with color-coded shrink sleeves (e.g., red for DC+, black for DC–, green for ground) to make installation intuitive for on-site technicians.
6. Example: 30 kW / 100 kWh Pre-Wired Cabinet Kit
Configuration Overview:
- 30 kW bidirectional PCS
- 100 kWh LFP rack battery (768V nominal)
- AC/DC distribution breakers
- EMS module with RS485 & Ethernet ports
- All wiring and testing completed at factory
Performance Metrics:
- Full installation time: < 4 hours
- Commissioning time: < 30 minutes
- Site error rate: 0% (vs. 15% for loose kits)
Result:
Installers can complete a full commercial deployment in one day instead of three.
7. How to Standardize Kit Models
To scale production efficiently, standardize around a few core SKUs:
| Model | Inverter Power | Battery Capacity | Form Factor |
|---|---|---|---|
| Kit-R10 | 10 kW | 15–30 kWh | Wall-mounted |
| Kit-C30 | 30 kW | 50–100 kWh | Cabinet |
| Kit-C100 | 100 kW | 200–300 kWh | Rack |
| Kit-M500 | 500 kW | 500–1000 kWh | Containerized |
Each model can share the same control wiring and monitoring architecture — simplifying engineering and documentation.
8. Logistics and Delivery Strategy
8.1 Regional Assembly Partners
For large kits, consider regional partners to:
- Assemble and wire components locally
- Reduce shipping volume and cost
- Ensure faster support and warranty response
8.2 Modular Shipping
Break large systems into plug-in submodules:
- PCS module
- Battery module
- Control panel
Each with quick connectors for on-site integration.
8.3 Customs and Certification
If shipping internationally:
- Include HS codes and CE/UL certificates
- Prepare MSDS sheets for batteries
- Add shock and tilt sensors on crates for warranty tracking
9. After-Sales Support and Training
Even with pre-wired kits, installers benefit from:
- Quick-start video tutorials
- Commissioning app or QR-based manuals
- Live remote support during first installation
Also provide:
- Spare fuse/breaker kit
- Test cable for communication ports
- Firmware USB drive for PCS or EMS updates
🎯 Goal: Make the installation experience as simple as “mount, connect, power up.”
10. Common Pitfalls to Avoid
- Undersized cable lugs or terminals → leads to overheating.
- Missing strain relief → vibration loosens wires during shipping.
- Mixing incompatible communication protocols (e.g., CAN 500k vs. 250k).
- Poor documentation → installers waste hours identifying connections.
- Inadequate ventilation in cabinets → leads to PCS derating.
11. Real-World Example: Distributor Pre-Wired Program
A Southeast Asian solar distributor introduced pre-wired hybrid inverter kits in 2024.
- Each kit included 10 kW inverter + 20 kWh wall-mounted battery.
- Pre-wired AC/DC breakers, fuses, and communication cables.
Results:
- Installation time reduced from 1 day → 2 hours.
- Warranty claims dropped 40%.
- Installers increased project turnover by 60%.
This approach helped the distributor stand out in a crowded market — providing “ready-to-install” solar + storage kits rather than generic component sales.

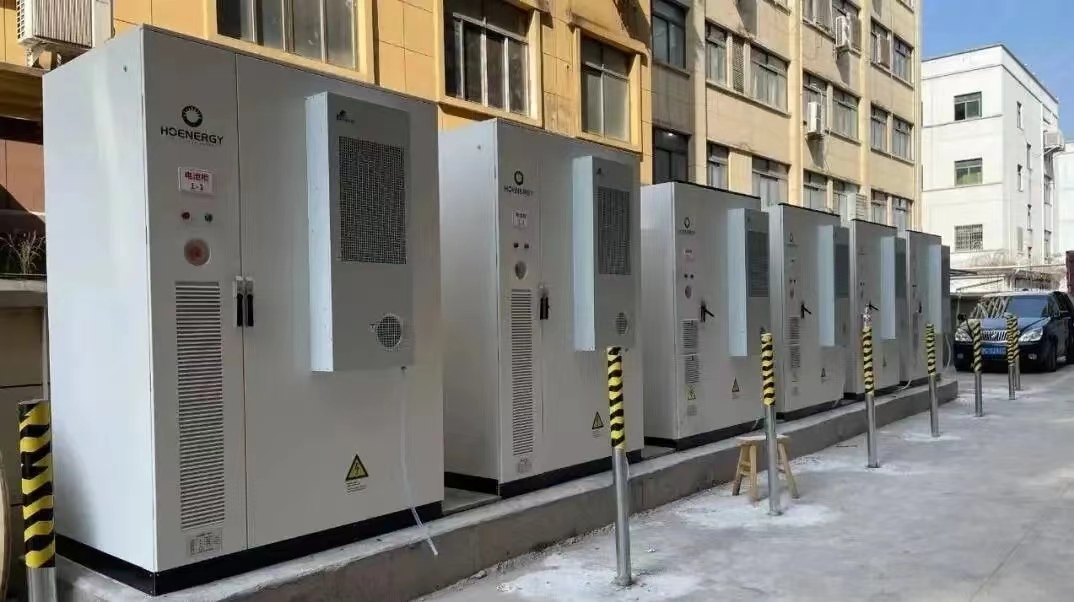

12. Future Trend: Plug-and-Play Energy Cabinets
Pre-wired kits are evolving into fully modular, plug-and-play cabinets:
- Integrated EMS + remote monitoring
- Smart pre-commissioning via QR scan
- Quick connectors for AC/DC and communication ports
- AI-based diagnostics during factory testing
In the near future, residential and C&I installers will no longer wire systems manually — instead, they’ll “dock” standardized energy modules built in controlled environments.
Providing pre-wired kits to end clients offers clear benefits:
✅ Faster installations
✅ Fewer wiring errors
✅ Better quality control
✅ Simplified logistics and maintenance
But it requires careful engineering, documentation, and modular design to balance flexibility and standardization.
🔋 Key Takeaways:
- Pre-wire everything possible: breakers, fuses, comms cables.
- Always include test reports and wiring diagrams.
- Standardize kit sizes for efficiency and branding.
- Support installers with training and remote help.
With a well-structured pre-wired program, you can deliver faster deployments, higher reliability, and greater customer satisfaction — all while reducing service costs and boosting brand reputation.
