Reliable Energy Storage Architecture for Grid Outages, Critical Loads, and Emergency Power
Most residential and small commercial energy storage systems are marketed as “solar batteries.” In reality, true backup power performance depends far more on system architecture, control logic, and load prioritization than on PV capacity.
This article focuses on how to design an ESS specifically for backup power, not just solar self-consumption—using practical, replicable system strategies and lessons from real deployments.
1. Backup Power Is a System Function, Not a Battery Feature
A common misconception is that adding a battery automatically guarantees backup power.
In practice, backup capability depends on four integrated elements:
- Energy storage capacity
- Power conversion capability
- Control and islanding logic
- Load management strategy
Without proper coordination between these layers, even large batteries may fail to supply power during outages.
2. Define Backup Objectives Before Selecting Hardware
Backup ESS design must start with clear operational goals.
Key questions to answer:
- Which loads must remain online during an outage?
- How long should backup power last?
- Is seamless (UPS-level) transfer required?
- Will backup operate daily or only during emergencies?
- Will generators be integrated later?
Designing backup systems without these answers often leads to oversizing—or worse, unusable systems during real outages.
3. Load-First Design: Identify and Classify Critical Loads
Backup ESS should be load-driven, not PV-driven.
Recommended load tiers:
- Tier 1 – Critical loads
Communications, servers, lighting, medical devices, security systems - Tier 2 – Priority loads
Refrigeration, essential HVAC, water pumps - Tier 3 – Non-essential loads
EV chargers, comfort HVAC, cooking appliances
A proper backup system isolates Tier 1 loads onto a protected sub-panel, preventing overload during outages.
4. Islanding Capability Is Non-Negotiable
A backup ESS must safely disconnect from the grid and form a stable local power system.
Core islanding requirements:
- Certified anti-islanding protection
- Fast grid-loss detection (<100 ms for seamless systems)
- Automatic transfer switch (ATS) or internal islanding relay
- Stable voltage and frequency reference during island mode
Without these features, the battery may remain idle during outages—despite having sufficient capacity.
5. Battery Power Rating Matters More Than Energy Capacity
Backup failures often occur due to insufficient inverter power, not insufficient kWh.
Design considerations:
- Peak starting currents (motors, compressors)
- Surge power requirements
- Simultaneous load behavior
- Power factor variation
For backup applications, prioritize:
- High short-term overload capability
- Stable low-voltage operation
- Low-voltage ride-through
A smaller battery with higher power capability often outperforms a larger, low-power system during outages.
6. Battery SOC Reservation Strategy for Emergencies
Backup-ready systems must reserve energy.
Best practices:
- Maintain minimum SOC reserve (20–40%)
- Prevent full discharge during normal operation
- Override self-consumption logic during outage risk periods
- Allow manual SOC locking for emergency readiness
Without SOC reservation, batteries may be empty when outages occur—especially in grid-tied, self-consumption-focused systems.
7. Black Start Capability Is Often Overlooked
Black start allows the ESS to restart the site from zero voltage.
Essential features:
- Battery-initiated inverter startup
- Sequential load reconnection logic
- Controlled voltage ramp-up
- Communication-independent fallback mode
This is critical for:
- Rural locations
- Communication towers
- Remote homes
- Sites without always-online generators
8. Generator Integration Improves Backup Reliability
Backup ESS design should consider future generator integration, even if not installed initially.
Hybrid backup architecture:
- Battery handles instant response
- Generator provides extended runtime
- ESS smooths generator loading
- Automatic load sharing and priority logic
This approach minimizes fuel use while ensuring long-duration backup capability.
9. Environmental and Installation Factors Matter
Backup systems often fail due to environmental stress.
Key design protections:
- Thermal management for battery enclosures
- Surge protection for utility and PV inputs
- Proper grounding and bonding
- Clear cable labeling and access paths
- Physical separation of critical circuits
Backup power must work in worst-case conditions, not ideal lab environments.

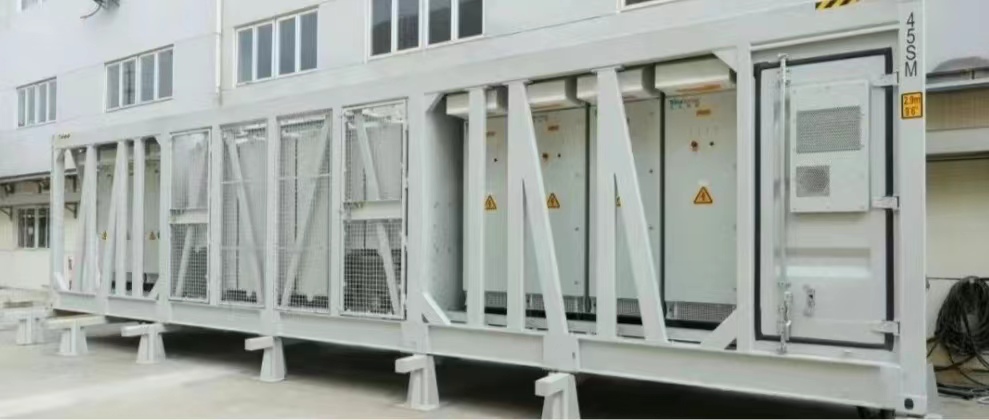

10. Case Insight: Backup-Focused ESS for a Small Commercial Site
System overview:
- 20 kWh lithium battery
- 10 kW inverter with 2× surge rating
- Critical load panel (6 kW max)
- No PV required for backup operation
- Optional generator input prepared
Results:
- Seamless grid outage transition
- Stable operation during motor starts
- 6–8 hours backup without PV
- Full-day coverage with modest PV contribution
- High reliability during repeated outages
This system delivered reliable backup without oversized solar arrays.
Designing an ESS for backup power requires shifting mindset—from energy harvesting to resilience engineering.
A well-designed backup ESS:
- Prioritizes critical loads
- Ensures fast islanding
- Maintains power stability
- Reserves energy intelligently
- Operates independently of solar availability
Backup power is not a feature—it is a system discipline.
