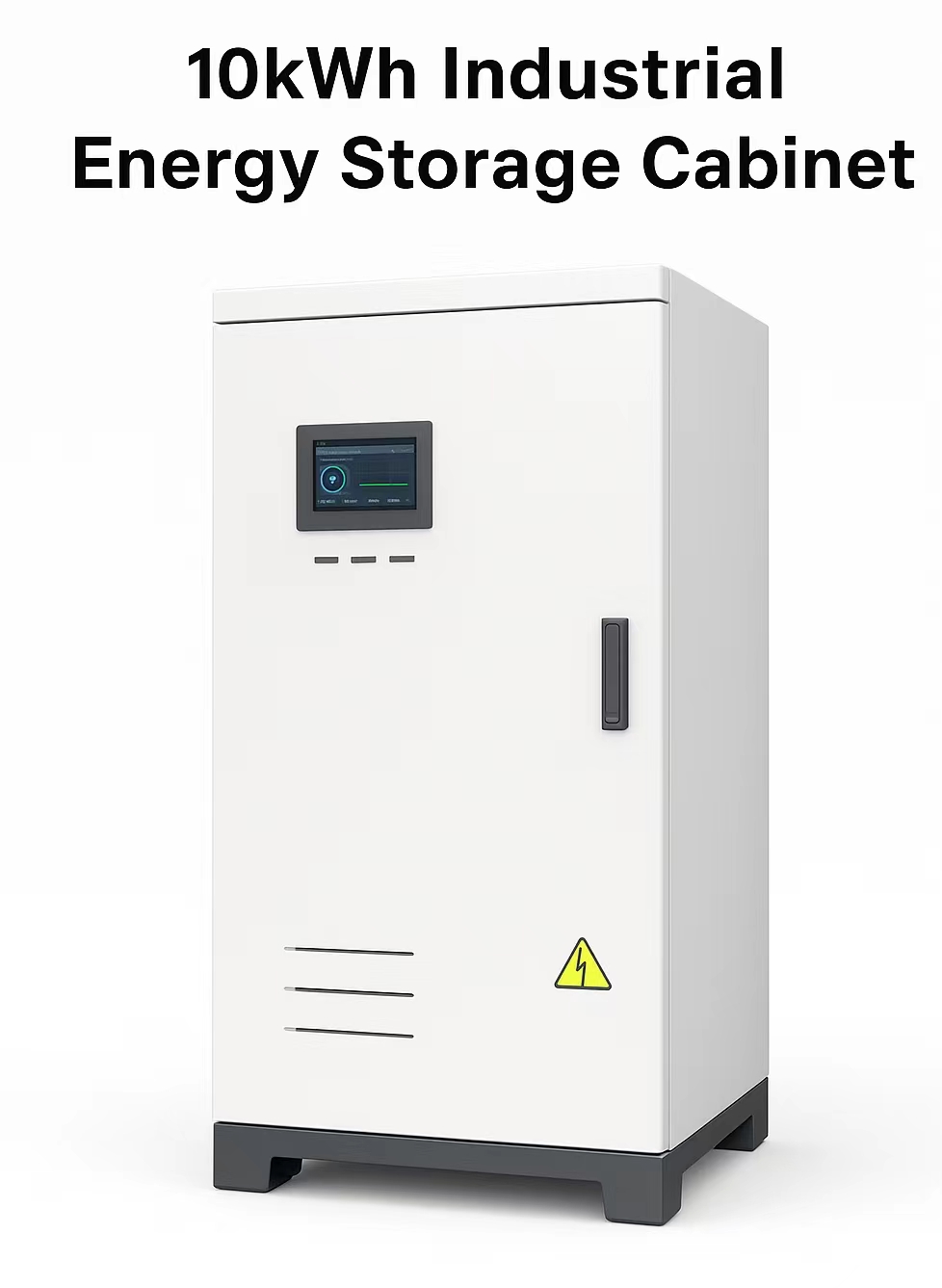

The 10kWh Industrial Energy Storage Cabinet is designed for high-demand energy scenarios, including factories, data centers, EV charging stations, and microgrids. It offers stable, scalable energy storage with intelligent management and high cycle life.
Key Features
🔹 Battery Type: LFP / NMC optional
🔹 Rated Capacity: 10kWh / scalable to 50kWh+
🔹 Output Voltage: 230V / 400V AC
🔹 Cooling: Air or Liquid Cooling
🔹 BMS Included: Yes (Smart protection & monitoring)
🔹 Certifications: CE, UN38.3, IEC, MSDS
🔹 Cabinet Format: Floor-standing / IP54 enclosure
Typical Applications
Industrial and commercial backup
Solar + Storage hybrid systems
EV charging buffer storage
Grid support and peak shaving
Telecom base stations and off-grid usage
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Type | LiFePO₄ / NMC |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah (10.24kWh) |
| Output Power | 5~10 kW (customizable) |
| Cycle Life | >6000 cycles @ 80% DOD |
| Communication | CAN / RS485 / MODBUS |
| Cabinet Size | 800×600×1200mm |
| Net Weight | ~180 kg |
Customization Options
Communication ports
Inverter integration
EMS + monitoring system
Cabinet color/logo branding
Parallel connection options
Looking for a turnkey energy storage solution?
